This plan is ideal for those who want to finance the construction of their own affordable home through the federal government program and Caixa Econômica Minha Casa Minha Vida. With a built area of approximately 62m² square meters, this plan has a TV room, dining room and integrated kitchen, 2 bedrooms with bathroom between them, as well as a modern facade with neutral tones.
| Included items |
| Click the items below to see an example: |
 Low Floor see example |
| Cover Plan see example |
| Humanized Plan see example |
| Table Summary of Frames see example |
| Example Project in AutoCAD (allows changes) see example |
| Facade Elevations see example |
| Internal Cuts see example |
| 3D Facade Images see example |
| Foundation Plan see example |
|
BUY PROJECT READY
|
| Building area | 61 square meters |
| Width of the house | 6,00 metros |
| Length of the house | 10,30 meters |
| Width of terrain | 7,00 meters or greater |
| Length of terrain | 25,00 meters or greater |
| Bedrooms | 2 |
| Suites | 0 |
| Bathrooms | 1 |
| Garage | 1 vacancies |
| Frontal Retreat | 6,00 meters |
| Background recoil | 8,70 meters |
| Left indent | 1,00 meters |
| Right indent | 0 meters |
Filter project by...
/ModernHousesPlans

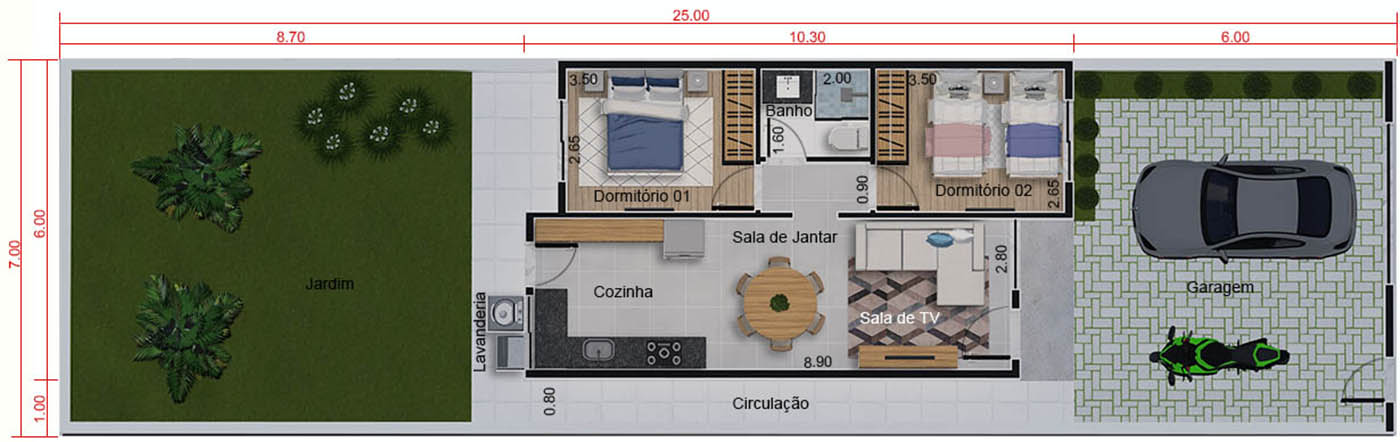

Ground floor
