Contemporary floor plan

Project code: 32A
PURCHASE
U$ 445.00

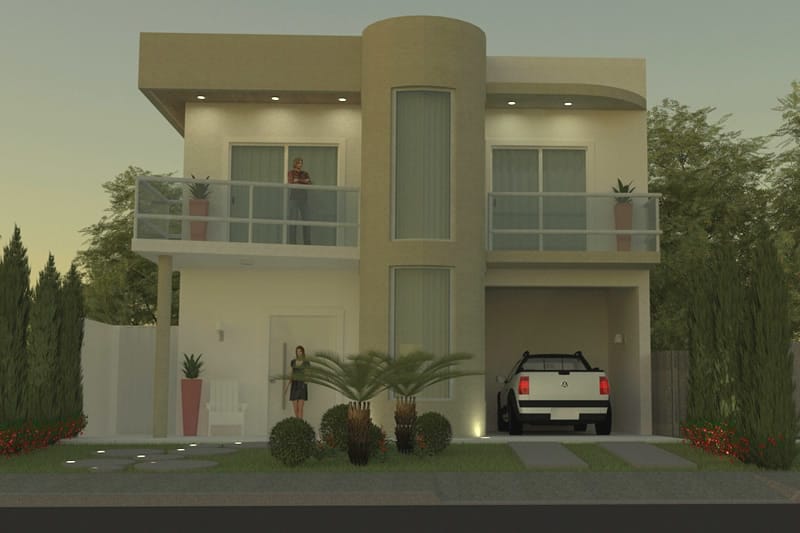

We bring another great project of townhouse with garage and three bedrooms, being the double with suite and closet. All rooms have a great use of spaces with built-in wardrobes. The upper floor is well insulated from the social part of the house, where TV room, dining room and kitchen are integrated for a better family fun. With good distribution of the rooms, we were able to free up space on the ground for the construction of a future leisure area.

HUMANIZED PLAN
Contemporary floor plan10x20
OTHER PROJECTS
PROJECT
Included items
Click the items below to see an example:
  Low Floor see example
  Cover Plan see example
  Humanized Plan see example
  Table Summary of Frames see example
  Example Project in AutoCAD (allows changes) see example
  Facade Elevations see example
  Internal Cuts see example
  3D Facade Images see example
  Foundation Plan see example
BUY PROJECT READY
Our projects can be adapted by a professional in your region.
Projects are translated into english and sent via email within 10 business days.
TECHNICAL INFORMATION
Building area 162 square meters
Width of the house 8,50 metros
Length of the house 11,20 meters
Width of terrain 10 meters or greater
Length of terrain 20 meters or greater
Bedrooms 3
Suites 1
Bathrooms 3
Garage 1 vacancies
Frontal Retreat 4 meters
Background recoil 9,80 meters
Left indent 1,50 meters
Right indent 0 meters
